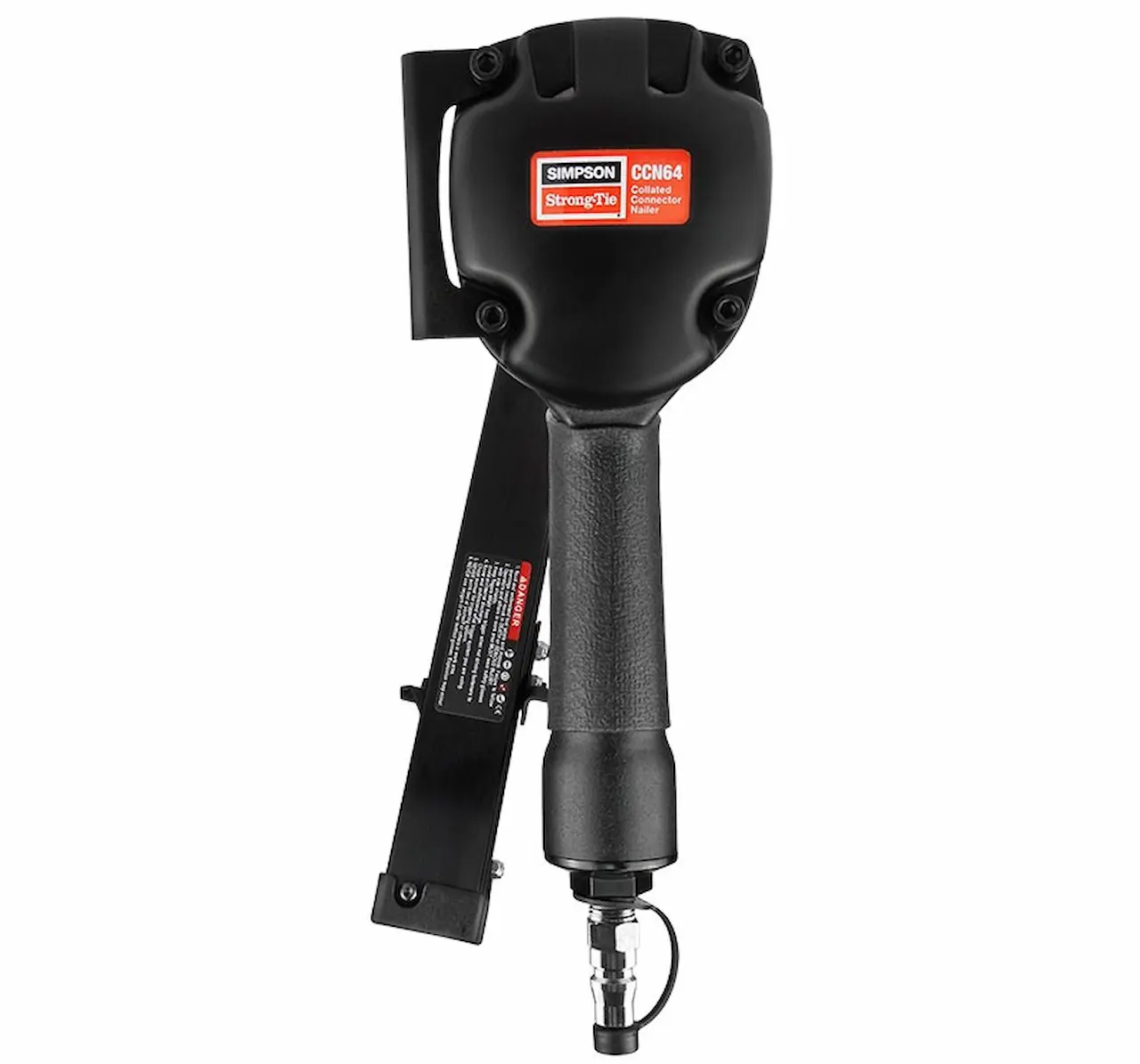

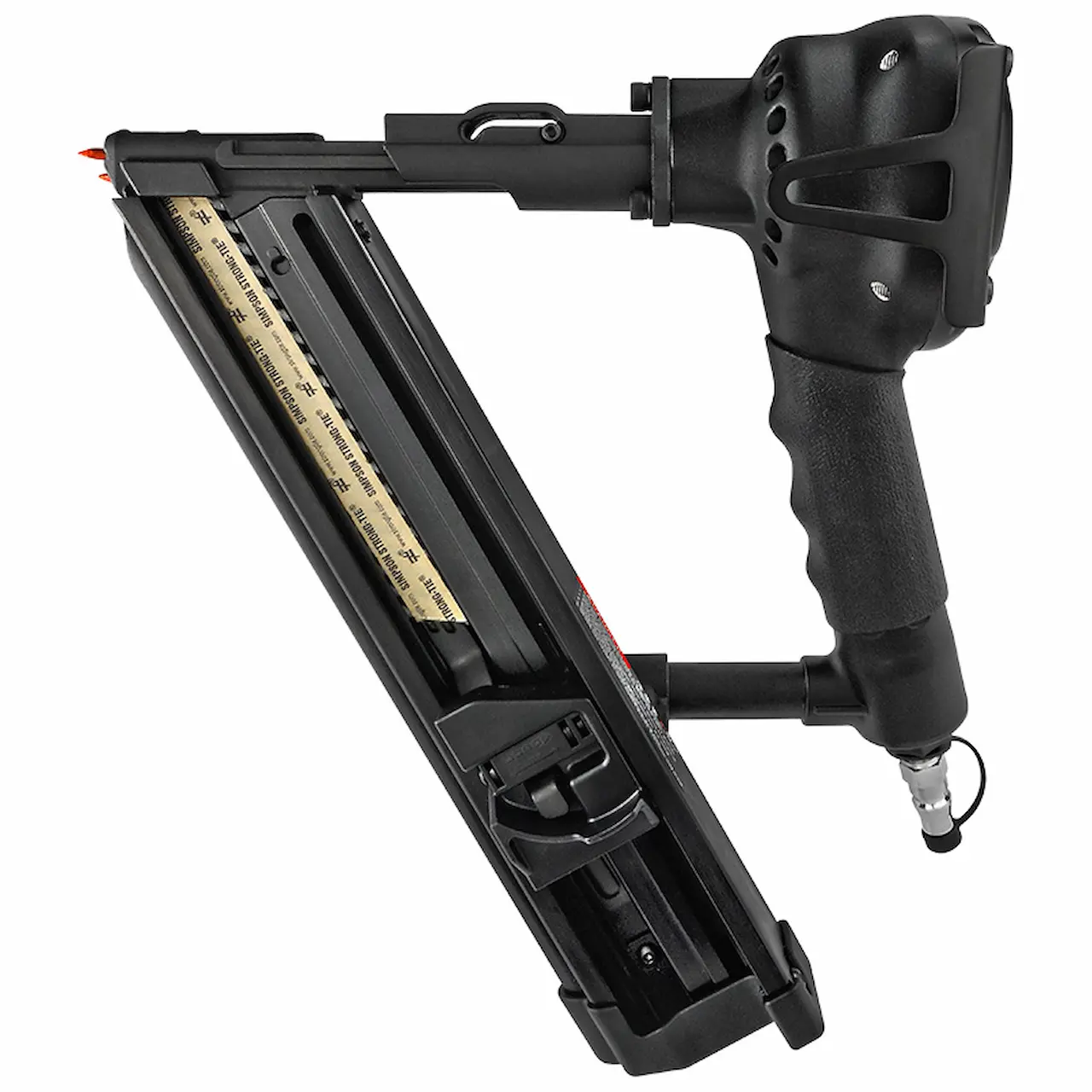

This Nail Gun Connector Collated CCN64 high-performance tool is designed to provide accurate connector installation quickly and easily. This tool is faster, more precise, and offers greater user comfort than traditional hand-nailing.
The CCN64 has a unique design, with connector nails that protrude from the tool tip. This allows the user to align the nails with the holes of the connectors without damaging the tool. Its Multi-Blow Action allows for controlled driving and prevents overdriven nails.
This Nail Gun Connector Collated CCN64 has a compact design and a narrow nosepiece, allowing it to reach into tight spaces with precision. The CCN64 is lightweight and ergonomic, weighing only 2 kg. This allows for one-handed operation as well as greater mobility at the jobsite.
The CCN64 is compatible with SCN and NCNR collated connectors, and supports collated paper-tape nails in lengths of 38mm and 64mm.
Accurate connector installation – Prevents misalignment of connectors and connector damage.
Faster Than Hand-Nailing – Improves efficiency and productivity.
Protruding nail tip – Easily locates the connector hole.
Multi-Blow Action Prevents nail overdriving for secure fastening.
Compact and Lightweight. Only 2.1kg. Ideal for small spaces and extended usage.
Operation with one hand – Improves handling.
Compatibility – The Nail Gun Connector Collated works with Strong Drive SCN and SCNR collated connectors.
Dimensions: L305 x W119 x H273 mm
Weight: 2.1 kg
Action: Multi-Blow
Operating Pressure: 90-120 psi
Magazine: Single Strip (approx. 28 nails)
CCN64 Nailer
User Manual
Allen Keys
Safety Glasses
Tool Oil

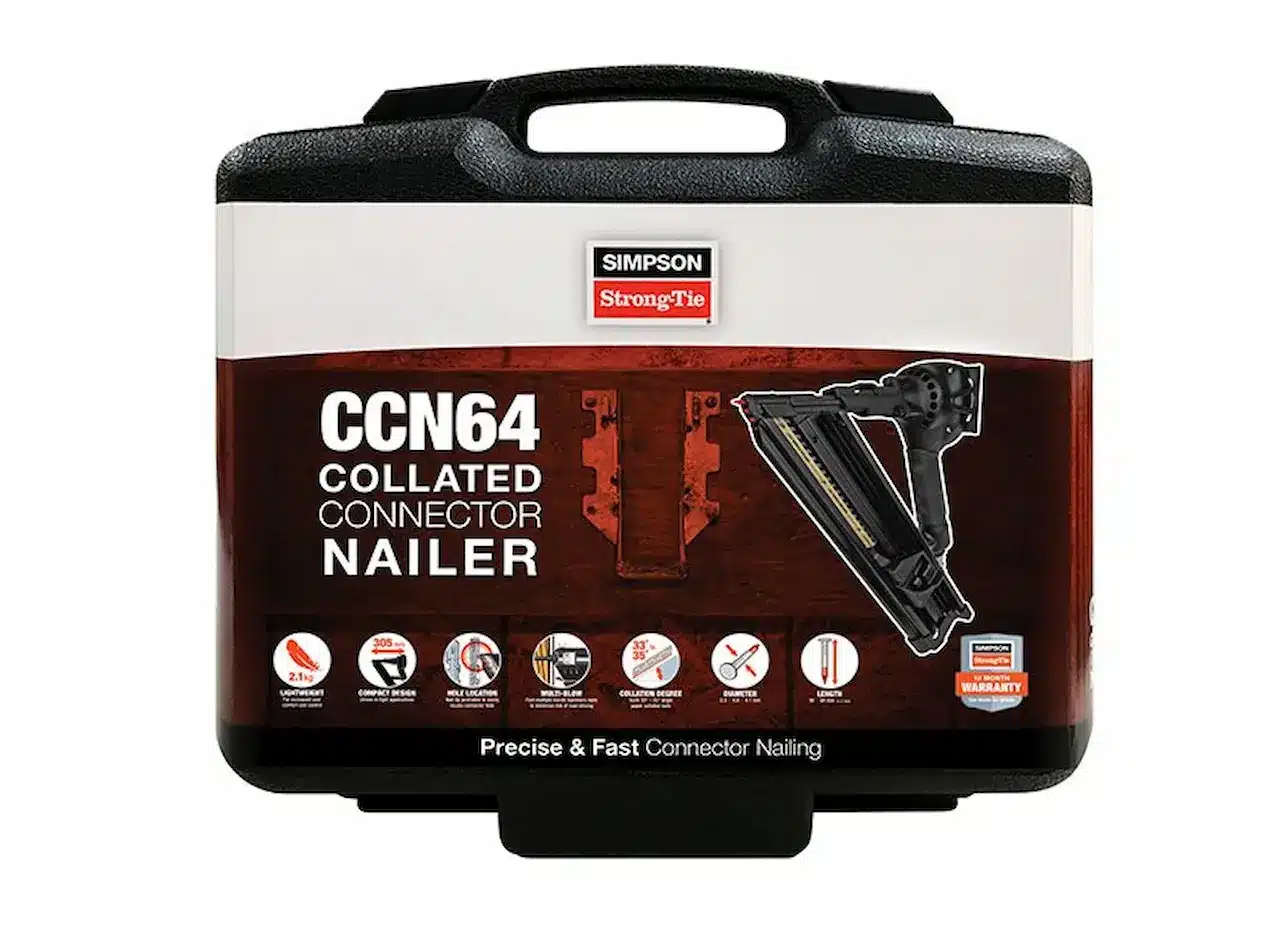

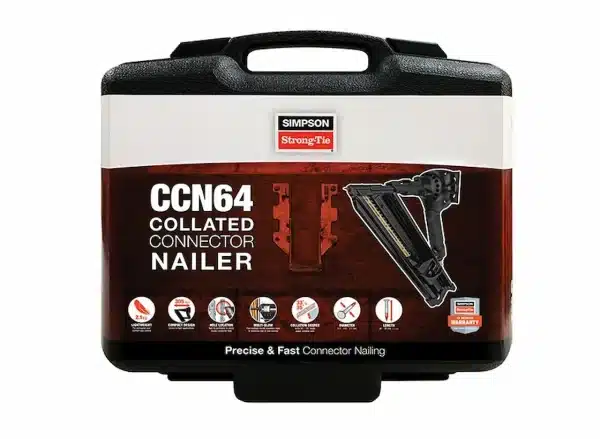

Rugged Toolbox
Angle: 33deg-35deg

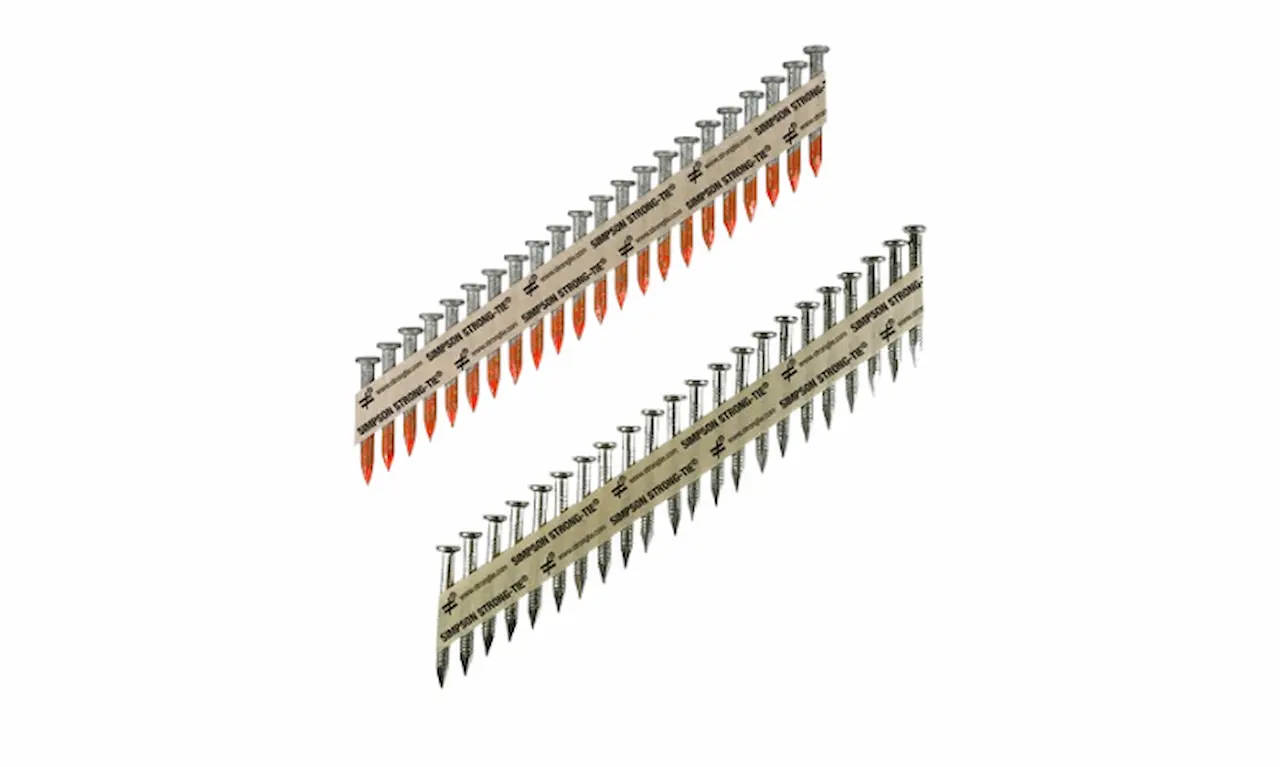

Collation Paper Tape
Head Type: Round head
Diameter: 3.3 mm | 3.8 mm | 4.1 mm
Length: 38 mm | 64 mm (+- 2 mm)
